Assembly Sequence

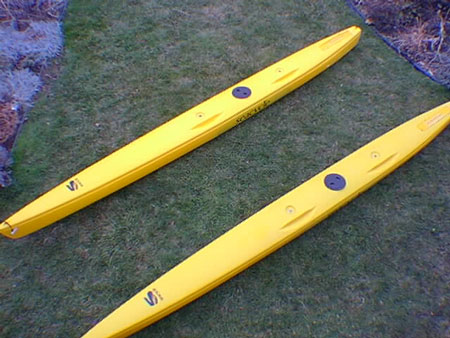

• Place pontoons parallel

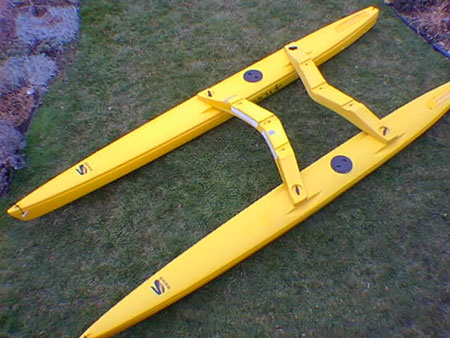

• Mount one strut at a time
• Mount Main Frames with #532

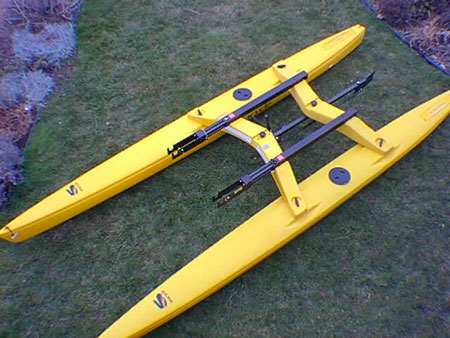

• Install rudder assembly #939

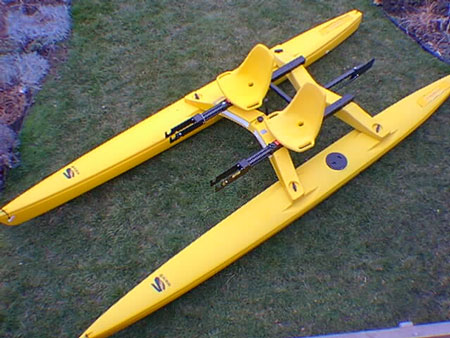

• Install seats using STa #73B
• Install stabilizer bar # D1B

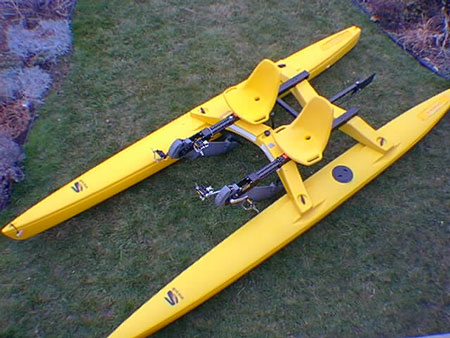

• Insert the drive units

Components

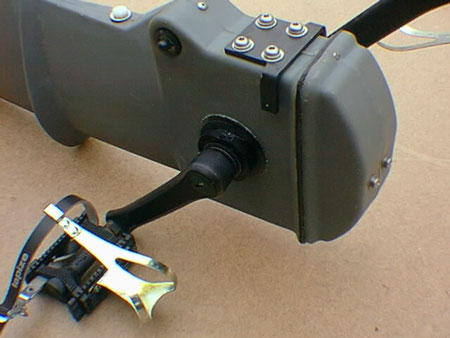

• DRIVE UNIT CAP

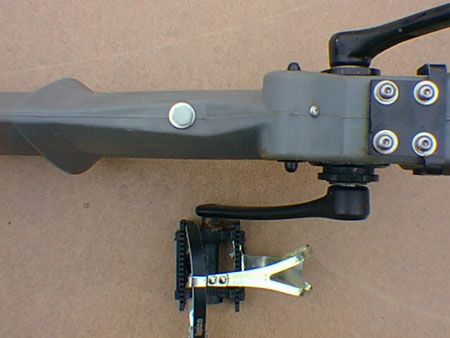

• DRIVE UNIT REAR VIEW

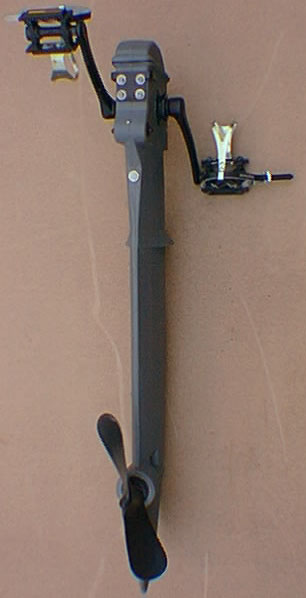

• DRIVE UNIT

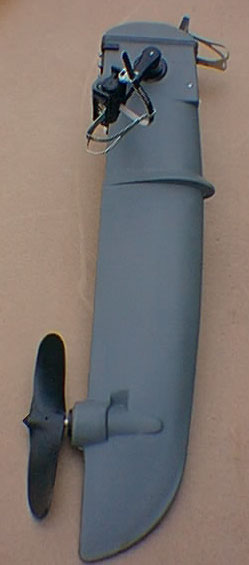

• DRIVE UNIT SIDE
• FRONT RUDDER POST BOTTOM

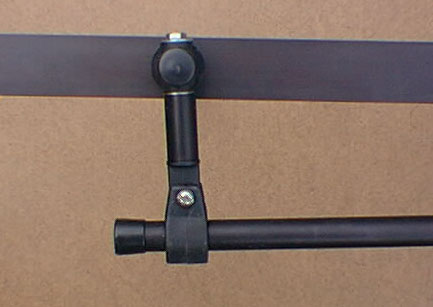

• FRONT RUDDER POST

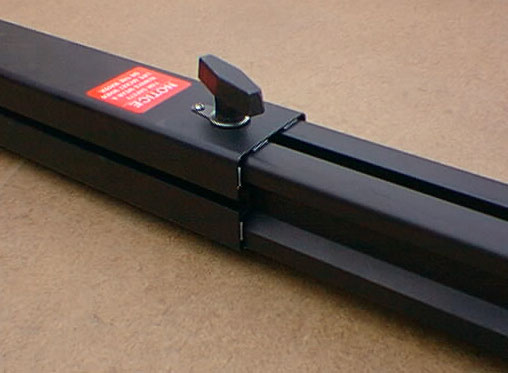

• LEG LENGTH ADJUSTMENT KNOB

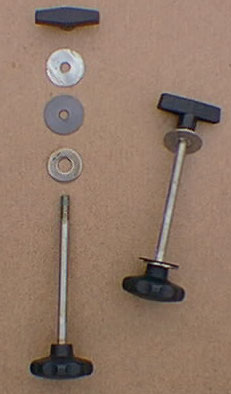

• LONG KNOB Rudder Assembly #233...

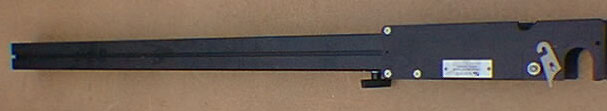

• MAIN FRAME COMPLETE

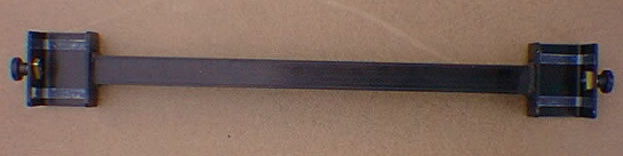

• MAIN FRAME STABILIZER B#CD4
• MAIN FRAME Top View

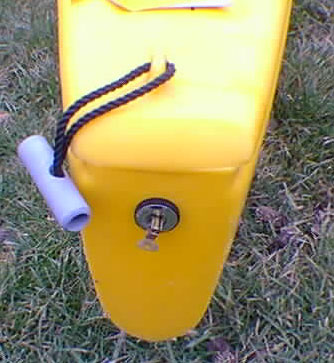

• PONTOON HANDLE AND PLUG

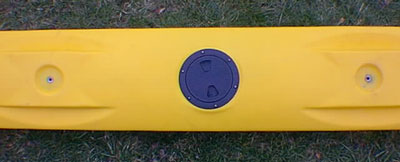

• PONTOON HATCH COVER

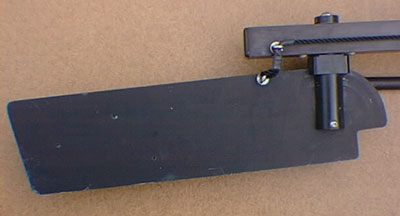

• REAR RUDDER POST AND BLADE
• REAR RUDDER POST Bottom

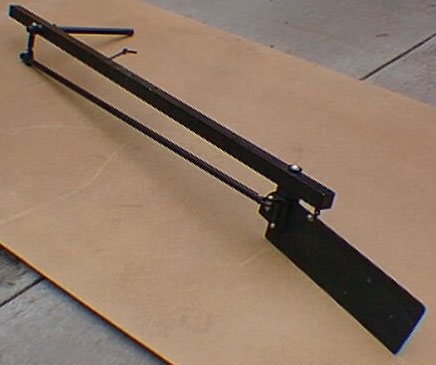

• RUDDER ASSEMBLY
• RUDDER CORD HOLDER FRONT

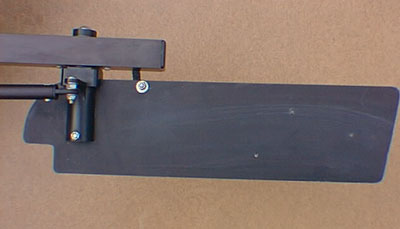

• RUDDER POST AND BLADE REAR
• SEAT
• STAR KNOBS WITH WASHERS AN#EBA

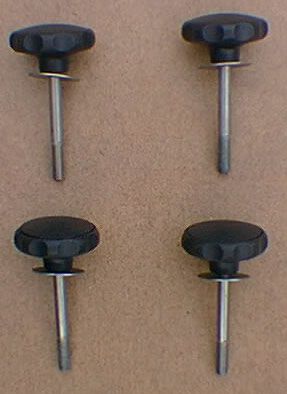

• STAR KNOBS attach Main #F9B
• STRUT

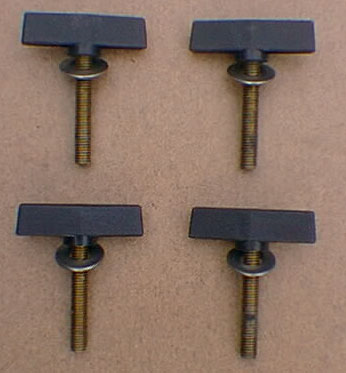

• T KNOBS LARGE PONTOONS #3B7

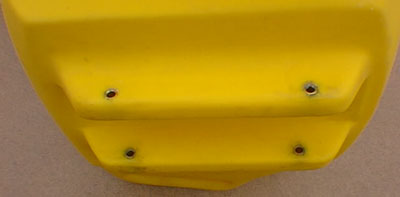

• UNDERSIDE OF SEAT
• TOP VIEW OF STABILIZER BAR
